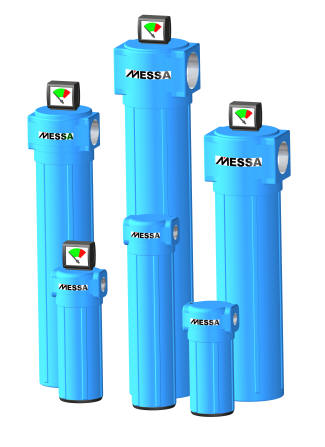

MHA

BASINÇLI HAVA FİLTRELERİ

GRADE P G G01 H D C DS
Pre Filter Coarse Filter Fine Filter Oil Filter/Ultra Fine Filter Dust Filter Active Carbon Filter Anti-Bacterial Filter
It filters solid particles and oil aerosols up to 5 microns and is also used as a pre-filter in G and H type filters. It filters solid, water and oil particles down to 1 micron. The amount of oil remaining at the filter outlet is 1 mg/m3 at 20 degrees. It filters solid, water and oil particles down to 0.1 micron. The amount of oil remaining at the filter outlet is 0.1 mg/m3 at 20 degrees. Filters solid particles and oil aerosols down to 0.01 micron. The amount of oil remaining at the filter outlet is 0.01 mg/m3 at 20 degrees (G grade filter has to be used upstream). It filters solid particles down to 0.01 micron. It is used to filter oil vapor and hydrocarbon odor. The amount of oil remaining at the filter outlet is 0.003 mg/m3 at 21 degrees. (G and H grade filters has to be used upstream) Filtration Efficieny is 99.99%
Particle filtration
(micron)
5 1 0.1 0.01 0.01 N/A 0.01
Oil Content at the exit of the filter (mg/m3) 5 0.5 0.1 0.01 N/A 0.003 N/A
Maximum working temperature (degree) 80 80 80 80 80 30 80
Minimum working temperature (degree) 2 2 2 2 2 2 2
Pressure loss
(dry, mbar)
30 80 80 100 100 100 100
Pressure loss
(wet, mbar)
80 140 140 200 200 300 200
Filter change delta pressure
(mbar)
700 700 700 700 700 1000 hours 700
Maximum inlet pressure
(bar)
16 16 16 16 16 16 16
Minimum inlet pressure
(bar)
2 2 2 2 2 2 2
